Deep Hole Drilling Machine

Deep hole drilling machine

Product Name : NC Twin Spindle Upright Deep Hole Drilling Machine

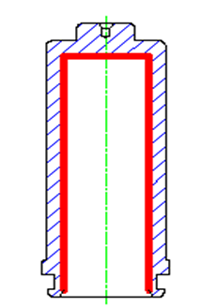

Work drawing Cylinder bore honing Work Piece Photo

CNC twin spindle deep hole drilling machine is designed and manufactured for making master cylinder, wheel cylinder, clutch cylinder etc. This deep hole drilling machine is designed with upside down unit spindles. This arrangement will allow chips to fall out easily. In addition, twin spindle machine can process two pieces at a time.



Machine Specification

Item Specification
1.Spindle Motor 7.5HP × 2 sets
2.Spindle Unit SB60
3.Stroke 300mm
4.Work Size 250mm
5Work Diameter Ø15 ~ Ø32mm
6.Feeding Servo ball screw slide and German linear guide way.
7.Coolant High pressure coolant through
8.Control System Mitsubishi PLC control system with HMI panel
9.Work Material Cast iron, aluminum
10.Filter System Coolant cooler, bag filter, magnetic filter, centrifugal
11.Chip Removal Magnetic scraper type chip conveyer, screw chip remover
12.Cycle Time 60 seconds/2 pieces




Product Name : Hydraulic Twin Spindle Upright Deep Hole Drilling Machine



Work drawing Cylinder bore honing Work Piece Photo

Hydraulic twin spindle deep hole drilling machine is designed and manufactured for making master cylinder, wheel cylinder, clutch cylinder etc. This deep hole drilling machine is designed with upside down unit spindles. This arrangement will allow chips to fall out easily. In addition, twin spindle machine can process two pieces at a time.



Machine Specificaiton

Item Specification
1.Spindle Motor 7.5HP × 2
2.Spindle Unit SB60
3.Stroke 300mm
4.Work Piece Length 250mm
5.Work Piece Diameter Ø15 ~ Ø32mm
6.Feeding Hydraulic slide and German linear guide way.
7.Coolant High pressure coolant through
8.Control System Mitsubishi PLC control system with HMI panel
9.Work Material Cast iron, aluminum
10.Filter System Coolant cooler, bag filter, magnetic filter, centrifugal
11.Chip Removal Magnetic scraper type chip conveyer, screw chip remover
12.Cycle Time 60 seconds/2 pieces




Product Name : NC Horizontal Four-Spindle Deep Hole Drilling Machine(Gun Drilling)

Deep Hole Drilling




Product Name : NC Horizontal Two-Spindle Deep Hole Drilling Machine(Gun Drilling)

Deep Hole Drilling


產品影片:


Related products

Product Pic Description

Honing machine

master cylinder, wheel cylinder, and clutch cylinder honing
Rotary type drilling and tapping machine   automotive parts of oil cup and oil outlet hole drilling and tapping
TC4K four spindle turret heads   can be mounted in either vertical or horizontal direction
TC6K six spindle turret heads   6 tools can be programmed for various speed change

Centrifugal separator coolant filtering is to separate particles from fluid for recycling
